Woodford 101 Repair Kit

Woodford RK-101 Repair Kit For Model 101 Mild Climate Wall Faucet. This kit contains parts 30002, 30093, 30570, 30247, 30105, 30459,30008, 30009, RK-101VB.
The Woodford 101 Repair Kit is a comprehensive set designed for the repair of Woodford Model 101 Mild Climate Wall Faucets. Here are some key features:

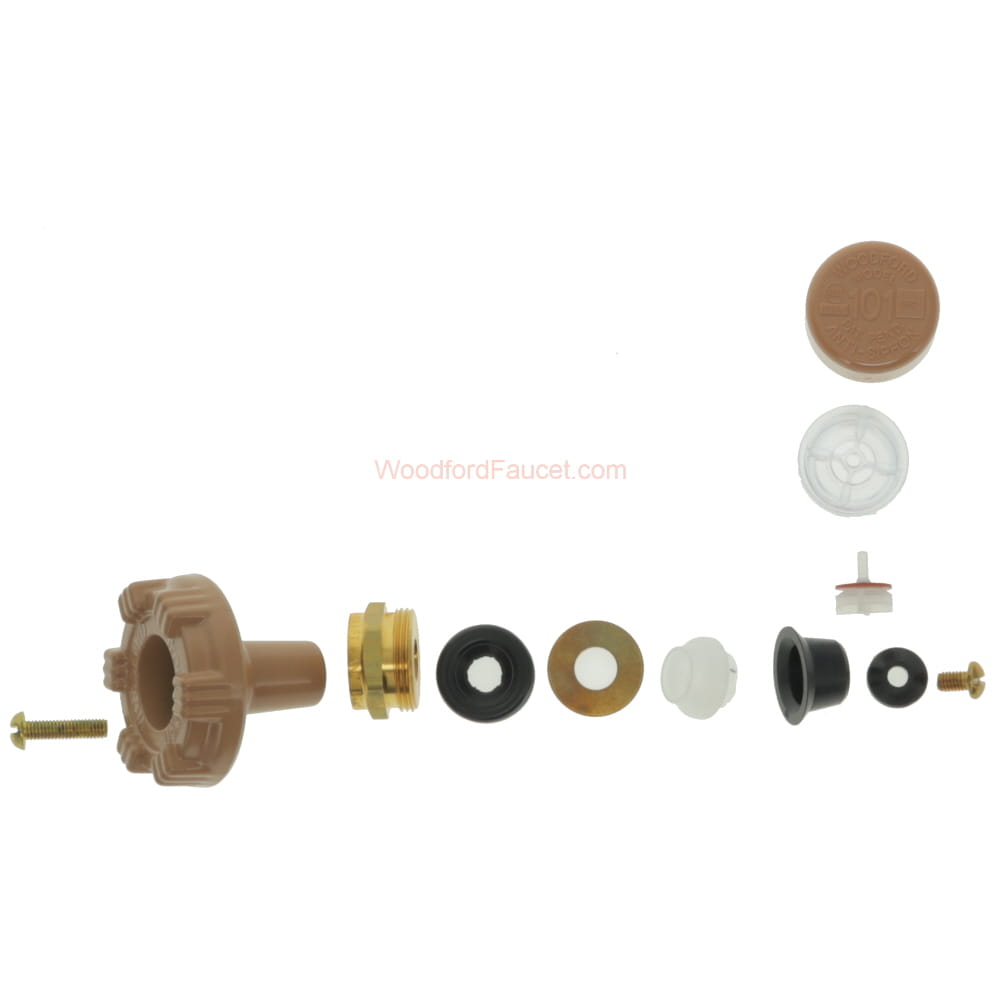

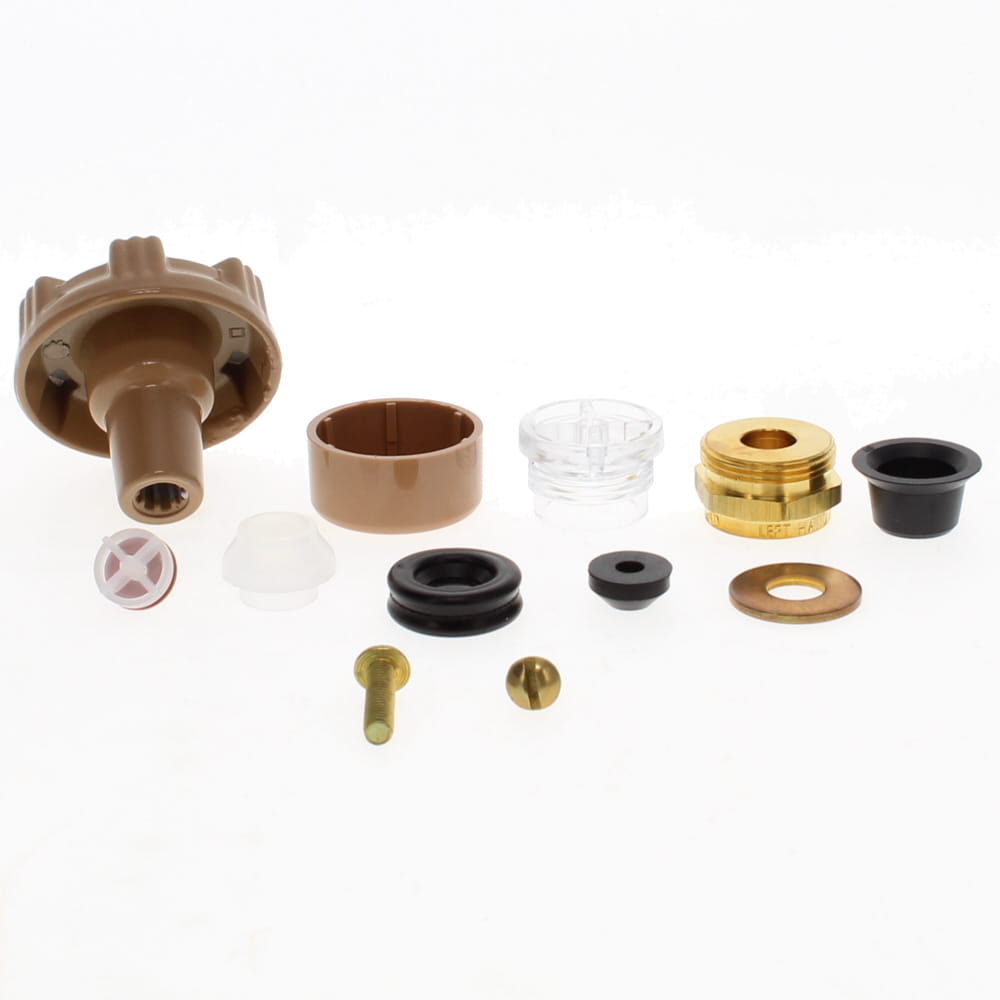

• The kit includes a handle screw, wheel handle, packing nut, EPDM packing, a packing support washer, an anti-turbulence sleeve, a check valve, a valve seat rubber, a retainer screw, and a vacuum breaker float kit.
• Repairs can be made without removing the faucet.
• The kit is suitable for use with Model 101 AntiSiphon Wall Faucets.
• The Woodford 101 Repair Kit is a genuine replacement part directly from Woodford.

Frequently Asked Questions
Q: Why is my Woodford faucet leaking from the cap on the top of the faucet
A:A leak from the anti-siphon cap is caused by a bad anti-siphon float, or body. To remedy this issue you would need to replace the vacuum breaker kit.

Q: Why is my Woodford faucet leaking from behind the handle
A: A leak from behind the handle is usually caused by a worn out packing. The packing washer will be located directly behind the hexagon shaped packing nut. When this rubber gasket goes bad it will allow the water to bypass, and leak through the nut.

Q: Why is my Woodford faucet leaking from the spout while in the off position
A: The rubber seat washer on the back end of the stem is most likely the cause for a leak from the spout. If the seat washer is cut, or deteriorating it will allow the water to pass through, and leak from the spout.
